• Air conditioning, single-zone
• Assist handle, front passenger on A-pillar
• Cruise control, electronic with set and resume speed, steering wheel-mounted
• Door locks, power

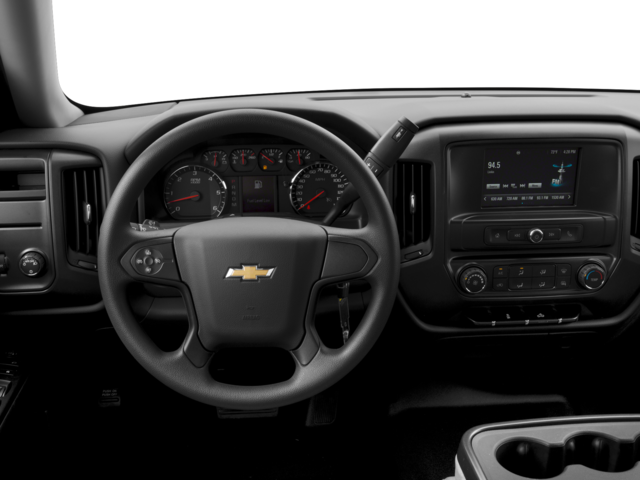

• Steering column, Tilt-Wheel, manual with theft-deterrent locking feature

• Alternator, 150 amps
• Battery, heavy-duty 730 cold-cranking amps/70 Amp-hr, maintenance-free with rundown protection and retained accessory power
• Brakes, 4-wheel disc with DURALIFE rotors, 4-wheel antilock
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Four wheel drive
• Frame, fully-boxed, hydroformed front section
• Pickup box
• Steering, Electric Power Steering (EPS) assist, rack-and-pinion
• Suspension Package, Handling/Trailering

• Airbags, Dual-stage frontal airbags for driver and front passenger, seat-mounted side-impact airbags for driver and front outboard passenger, and head-curtain side-impact airbags for front and rear outboard seating positions; includes Passenger Sensing System (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Daytime Running Lamps with automatic exterior lamp control
• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control includes electronic trailer sway control and hill start assist
• Tire Pressure Monitoring System (does not apply to spare tire)

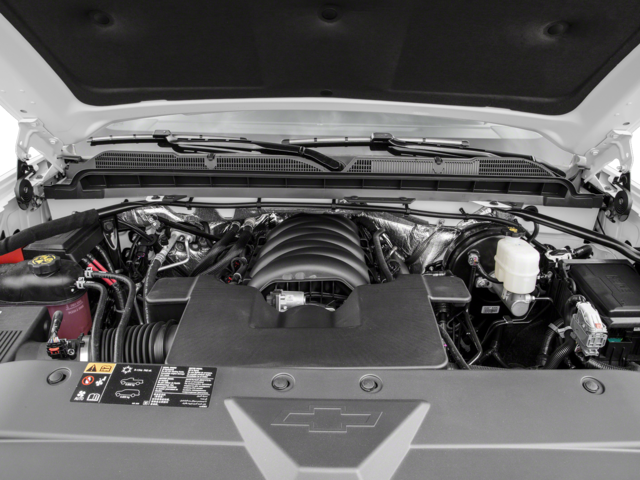

ENGINE, 5.3L ECOTEC3 V8 WITH ACTIVE FUEL MANAGEMENT, DIRECT INJECTION AND VARIABLE VALVE TIMING

• includes aluminum block construction (355 hp [265 kW] @ 5600 rpm
• 383 lb-ft of torque [518 Nm] @ 4100 rpm; more than 300 lb-ft of torque from 2000 to 5600 rpm)

TRANSMISSION, 6-SPEED AUTOMATIC, ELECTRONICALLY CONTROLLED

• with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking (STD)

CHROME BUMPER PACKAGE

• includes (VJH) rear chrome bumper with (BWN) CornerSteps and (V46) chrome front bumper

ONSTAR WITH 4G LTE

• and built-in Wi-Fi hotspot to connect to the internet at 4G LTE speeds
• includes 3GB or 3 months OnStar Data Trial (whichever comes first)

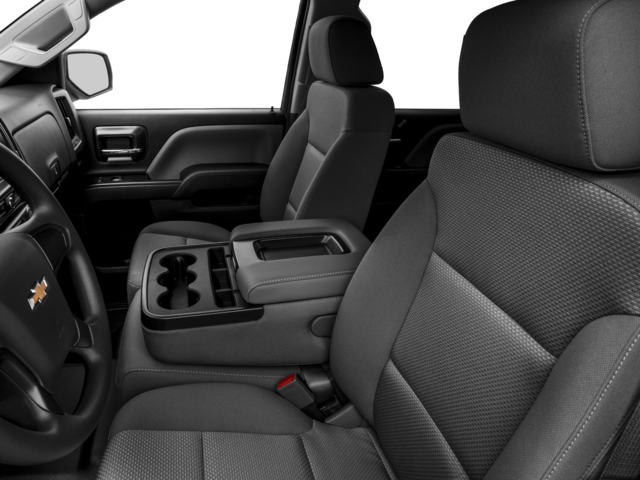

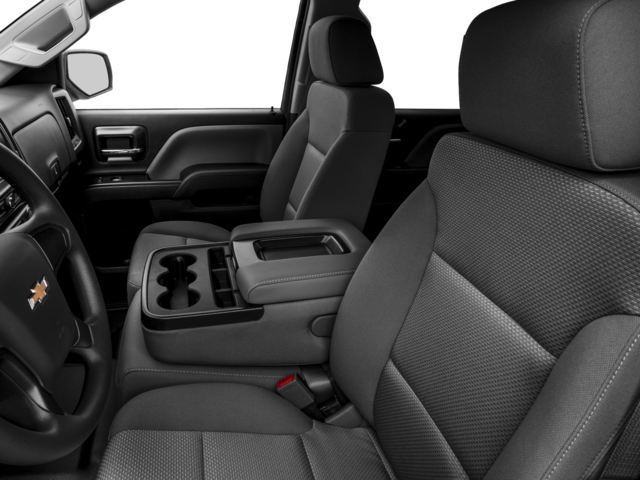

SEATS, FRONT 40/20/40 SPLIT-BENCH, 3-PASSENGER, DRIVER AND FRONT PASSENGER MANUAL RECLINE

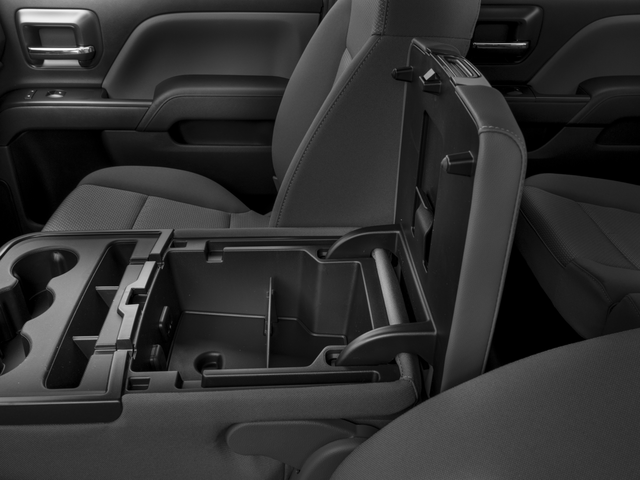

• with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manual adjustable driver lumbar. (STD)

WORK TRUCK PREFERRED EQUIPMENT GROUP

• includes standard equipment

BED LINER, SPRAY-ON, PICKUP BOX BED LINER

• with bowtie logo. Liner is permanently bonded to the truck bed providing a water tight seal. The textured
• non-skid surface is black in color and robotically applied. Spray-on liner covers entire bed interior surface below side rails
• including tailgate
• front box top rail
• gage hole plugs and lower tie down loops.

FLOOR COVERING, COLOR-KEYED CARPETING WITH RUBBERIZED VINYL FLOOR MATS

• (Double Cab and Crew Cabs include second row floor mats)

SPECIAL SERVICE PACKAGE

• includes (K4D) 730 cold-cranking amp auxiliary battery
• (KW7) 170 amp alternator
• (L83) 5.3L EcoTec3 V8 engine
• (K47) high capacity air cleaner and (KI4) 110-volt power outlet

ASSIST STEPS, CHROMED TUBULAR, 6" RECTANGULAR

• (factory installed)

LED LIGHTING, CARGO BOX

• with switch on center switch bank

• Z71 PACKAGE OFF-ROAD
• AIR CLEANER HIGH-CAPACITY

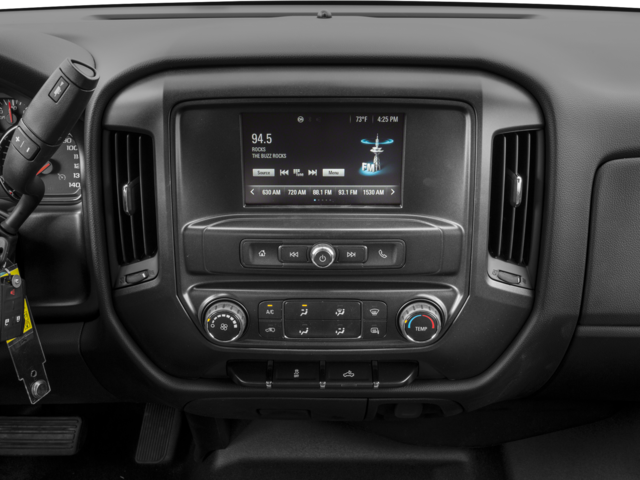

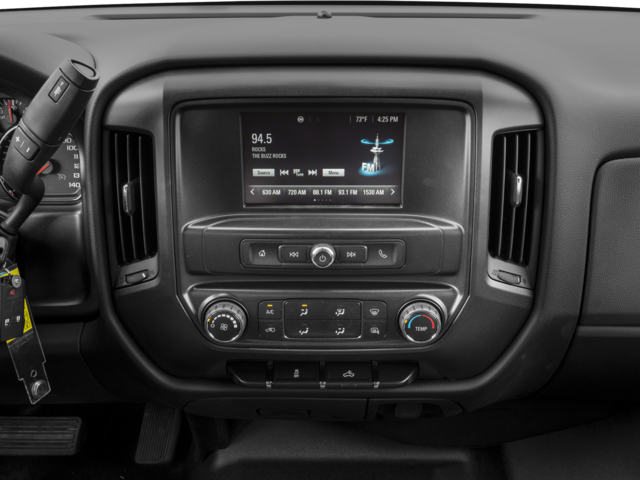

• AUDIO SYSTEM CHEVROLET MYLINK RADIO WITH 7" DIAGONAL COLOR TOUCH-SCREEN AM/FM STEREO with seek-and-scan and digital clock includes Bluetooth® streaming audio for music and select phones; featuring Android Auto and Apple CarPlay capability for compatible phone (Includes (UQ3) 6-speaker audio system (UE1) OnStar (VV4) OnStar 4G LTE Wi-Fi Hotspot.)
• DIFFERENTIAL HEAVY-DUTY LOCKING REAR
• ALTERNATOR 170 AMP
• TRANSMISSION 6-SPEED AUTOMATIC ELECTRONICALLY CONTROLLED with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking (STD)
• GLASS DEEP-TINTED
• UNDERBODY SHIELD TRANSFER CASE PROTECTION
• E85 FLEXFUEL CAPABLE OF RUNNING ON UNLEADED OR UP TO 85% ETHANOL
• CHROME BUMPER PACKAGE includes (VJH) rear chrome bumper with (BWN) CornerSteps and (V46) chrome front bumper
• DEFOGGER REAR-WINDOW ELECTRIC
• ENGINE BLOCK HEATER
• BUMPER FRONT CHROME
• REAR AXLE 3.08 RATIO
• MIRROR INSIDE REARVIEW AUTO-DIMMING
• TRAILER BRAKE CONTROLLER INTEGRATED
• OnStar Equipped (subscription required)
• GVWR 7200 LBS. (3266 KG)
• LICENSE PLATE KIT FRONT
• OnStar Equipped (subscription required)
• WHEELS 18" X 8.5" (45.7 CM X 21.6 CM) BRIGHT-MACHINED ALUMINUM
• POWER OUTLET 110-VOLT AC
• SEATS FRONT 40/20/40 SPLIT-BENCH 3-PASSENGER DRIVER AND FRONT PASSENGER MANUAL RECLINE with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manual adjustable driver lumbar. (STD)
• WORK TRUCK PREFERRED EQUIPMENT GROUP includes standard equipment
• ENGINE 5.3L ECOTEC3 V8 WITH ACTIVE FUEL MANAGEMENT DIRECT INJECTION AND VARIABLE VALVE TIMING includes aluminum block construction (355 hp [265 kW] @ 5600 rpm 383 lb-ft of torque [518 Nm] @ 4100 rpm; more than 300 lb-ft of torque from 2000 to 5600 rpm)
• REMOTE KEYLESS ENTRY WITH 2 TRANSMITTERS Includes (A91) remote locking tailgate.)
• BED LINER SPRAY-ON PICKUP BOX BED LINER with bowtie logo. Liner is permanently bonded to the truck bed providing a water tight seal. The textured non-skid surface is black in color and robotically applied. Spray-on liner covers entire bed interior surface below side rails including tailgate front box top rail gage hole plugs and lower tie down loops.
• FLOOR COVERING COLOR-KEYED CARPETING WITH RUBBERIZED VINYL FLOOR MATS (Double Cab and Crew Cabs include second row floor mats)
• SPECIAL SERVICE PACKAGE includes (K4D) 730 cold-cranking amp auxiliary battery (KW7) 170 amp alternator (L83) 5.3L EcoTec3 V8 engine (K47) high capacity air cleaner and (KI4) 110-volt power outlet

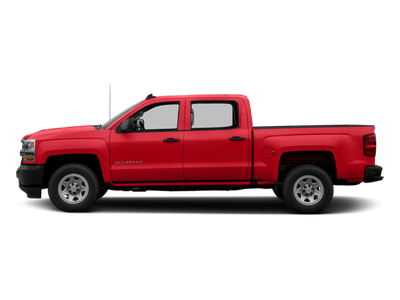

• RED HOT
• ASSIST STEPS CHROMED TUBULAR 6" RECTANGULAR (factory installed)
• SIRIUSXM SATELLITE RADIO (subscription required)
• REMOTE LOCKING TAILGATE
• BATTERY 730 COLD-CRANKING AMPS AUXILIARY
• LED LIGHTING CARGO BOX with switch on center switch bank
• PAINT SOLID
• MIRRORS OUTSIDE HEATED POWER-ADJUSTABLE VERTICAL TRAILERING UPPER GLASS MANUAL-FOLDING AND EXTENDING BLACK; includes integrated turn signal indicators consisting of 51 square inch flat mirror surface positioned over a 24.5 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated and not power adjustable) and addition of auxiliary cargo lamp for backing up (helps to see trailer when backing up with a trailer) and amber auxiliary clearance lamp Includes (DD8) auto-dimming inside rearview mirror on all models.)
• TRAILERING PACKAGE includes trailer hitch 7-pin and 4-pin connectors Includes (G80) locking rear differential.
• DARK ASH WITH JET BLACK INTERIOR ACCENTS CLOTH SEAT TRIM
• LPO MOLDED SPLASH GUARDS BLACK
• COOLING AUXILIARY EXTERNAL TRANSMISSION OIL COOLER
• BUMPER REAR CHROME
• TIRE SPARE P265/70R17 ALL-SEASON BLACKWALL
• TRANSFER CASE ELECTRONIC AUTOTRAC WITH ROTARY DIAL CONTROL
• SUSPENSION PACKAGE OFF-ROAD FOR BASE DECOR VEHICLES Includes Z71 Off Road Suspension components recovery hooks (K47) high capacity air cleaner and (NZZ) transfer case shield on 4WD.
• TIRES 265/65R18SL MT 114S BLACKWALL GOODYEAR WRANGLER DURATRAC. Includes (RC4) 17" all-season spare tire and (PZX) 18" x 8.5" (45.7 cm x 21.6 cm) bright-machined aluminum wheels.)
• REAR VISION CAMERA WITH DYNAMIC GUIDE LINES
• Four Wheel Drive
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Tires - Front All-Season
• Tires - Rear All-Season
• Conventional Spare Tire
• Tow Hooks
• Daytime Running Lights
• HID headlights
• AM/FM Stereo
• MP3 Capability
• Auxiliary Audio Input
• Split Bench Seat
• Pass-Through Rear Seat

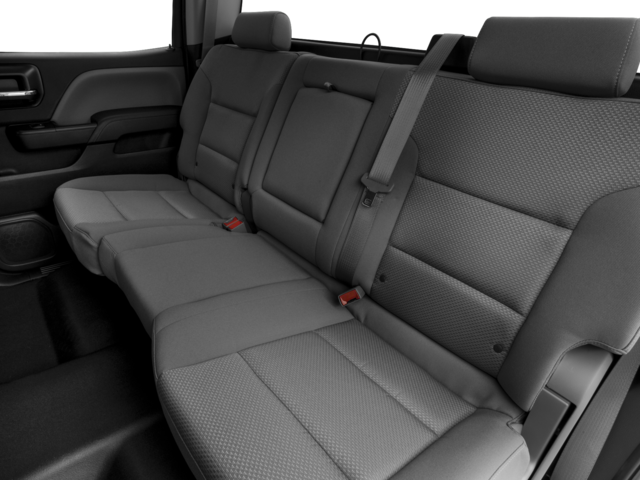

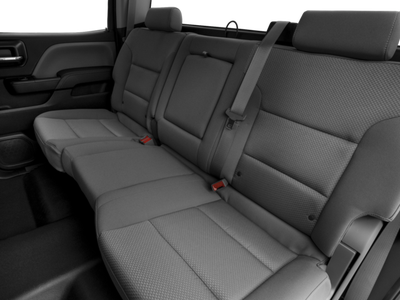

• Rear Bench Seat
• Adjustable Steering Wheel
• Power Windows
• Power Door Locks
• Cruise Control
• A/C
• Traction Control
• Stability Control
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Front Side Air Bag
• Front Head Air Bag
• Rear Head Air Bag
• Passenger Air Bag Sensor
• Telematics
• Requires Subscription
• Tire Pressure Monitor

• Mileage
• Fuel Economy Est-Combined (MPG): 18
• Fuel Economy Est-Combined (MPG): 19
• EPA Fuel Economy Est - City (MPG): 16
• EPA Fuel Economy Est - City (MPG): 17
• EPA Fuel Economy Est - Hwy (MPG): 22
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 720
• Cold Cranking Amps @ 0° F (Primary): 730
• Cold Cranking Amps @ 0° F (2nd): 730
• Maximum Alternator Capacity (amps): 170
• Maximum Alternator Capacity (amps): 150
• Cooling System
• Total Cooling System Capacity (qts): 15.6
• Total Cooling System Capacity (qts): 14.8
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3950
• Gross Axle Wt Rating - Rear (lbs): 3950
• Curb Weight - Front (lbs): - TBD -
• Curb Weight - Rear (lbs): - TBD -
• Gross Vehicle Weight Rating Cap (lbs): 7200
• Gross Vehicle Weight Rating Cap (lbs): 7100
• Gross Combined Wt Rating (lbs): 12000
• Gross Combined Wt Rating (lbs): 12800
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 6100
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 7000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 610
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 700
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): - TBD -
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): - TBD -
• Maximum Trailering Capacity (lbs): 10800
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Spring Capacity - Front (lbs): 3950
• Spring Capacity - Rear (lbs): 3950
• Axle Type - Front: - TBD -
• Axle Type - Rear: - TBD -
• Axle Capacity - Front (lbs): 3950
• Axle Capacity - Rear (lbs): 3950
• Axle Ratio (:1) - Front: 3.08
• Axle Ratio (:1) - Front: 3.42
• Axle Ratio (:1) - Rear: 3.08
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): 46
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.35
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.0 x 1.18
• Rear Brake Rotor Diam x Thickness (in): 13.6 x 0.79
• Tires
• Front Tire Order Code: RI8
• Front Tire Order Code: RBZ
• Rear Tire Order Code: RI8
• Rear Tire Order Code: RBZ
• Spare Tire Order Code: RC4
• Spare Tire Order Code: ZBZ
• Front Tire Size: P265/65R18
• Front Tire Size: P255/70R17
• Rear Tire Size: P265/65R18
• Rear Tire Size: P255/70R17
• Spare Tire Size: P265/70R17
• Spare Tire Size: P255/70R17
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 18 x 8.5
• Front Wheel Size (in): 17 x 8.0
• Rear Wheel Size (in): 18 x 8.5
• Rear Wheel Size (in): 17 x 8.0
• Spare Wheel Size (in): 17 x 7.0
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Aluminum
• Steering
• Steering Type: Electric Rack & Pinion
• Steering Ratio (:1), On Center: 16.3
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 47.2
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 143.5
• Length, Overall w/o rear bumper (in): 230.03
• Width, Max w/o mirrors (in): 80.0
• Height, Overall (in): 73.97
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 150.90
• Cab to Axle (in): 31.97
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 34.3
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 8.90
• Ground Clearance, Rear (in): 8.90
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 69.33
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 64.6
• Cargo Box Width @ Wheelhousings (in): 51.03
• Cargo Box (Area) Height (in): 21.10
• Tailgate Width (in): 62.2
• Cargo Volume (ft³): 53.4
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 42.80
• Front Leg Room (in): 45.27
• Front Shoulder Room (in): 66.03
• Front Hip Room (in): 60.73
• Second Head Room (in): 40.50
• Second Leg Room (in): 40.93
• Second Shoulder Room (in): 65.73
• Second Hip Room (in): 60.27
• Summary
• Vehicle Name: Chevrolet Silverado 1500
• Body Style: Crew Cab Pickup
• Body Code: E63
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: 9.8
• Tons/yr of CO2 Emissions @ 15K mi/year: 9.3
